VD1511-17

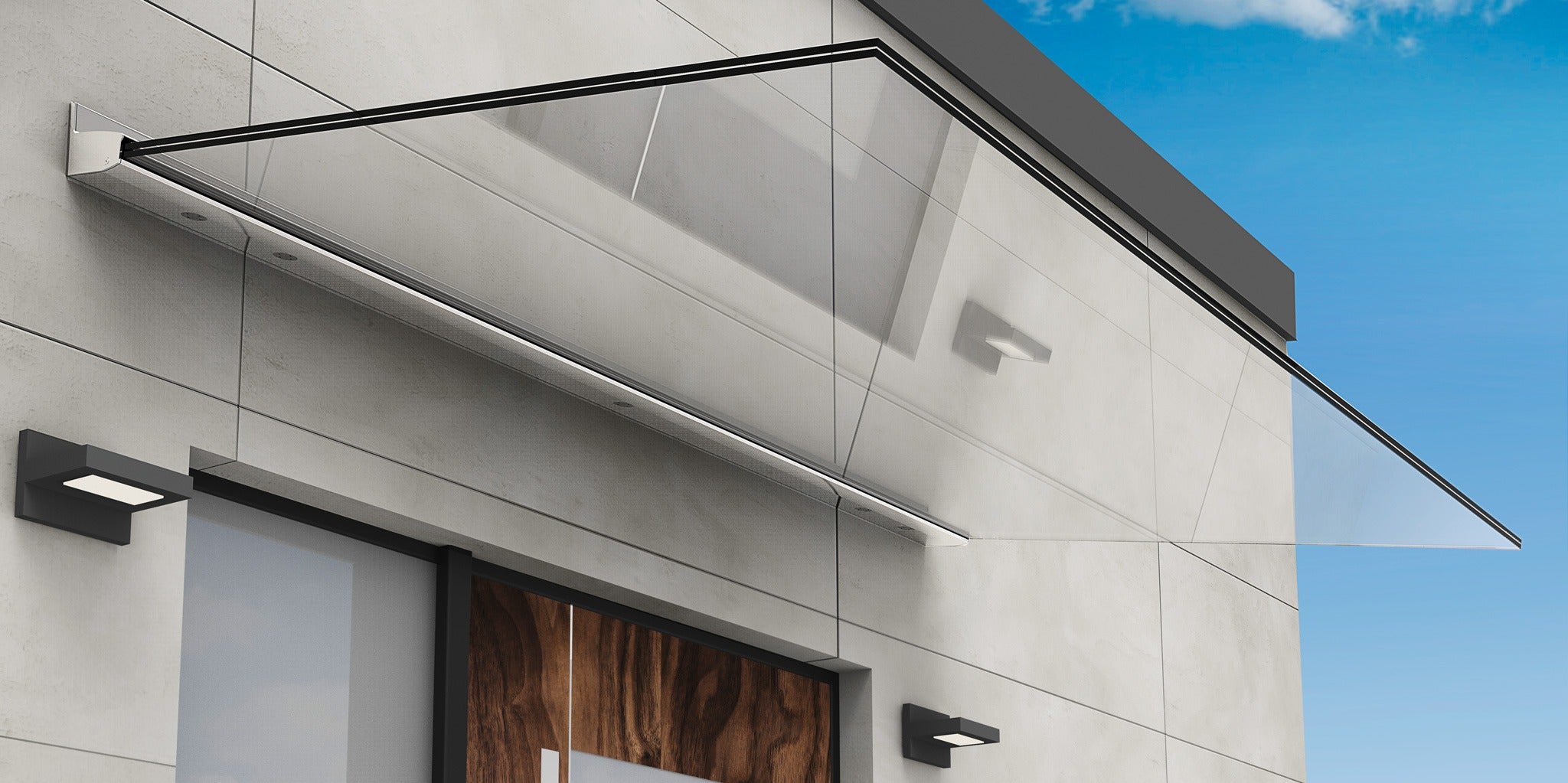

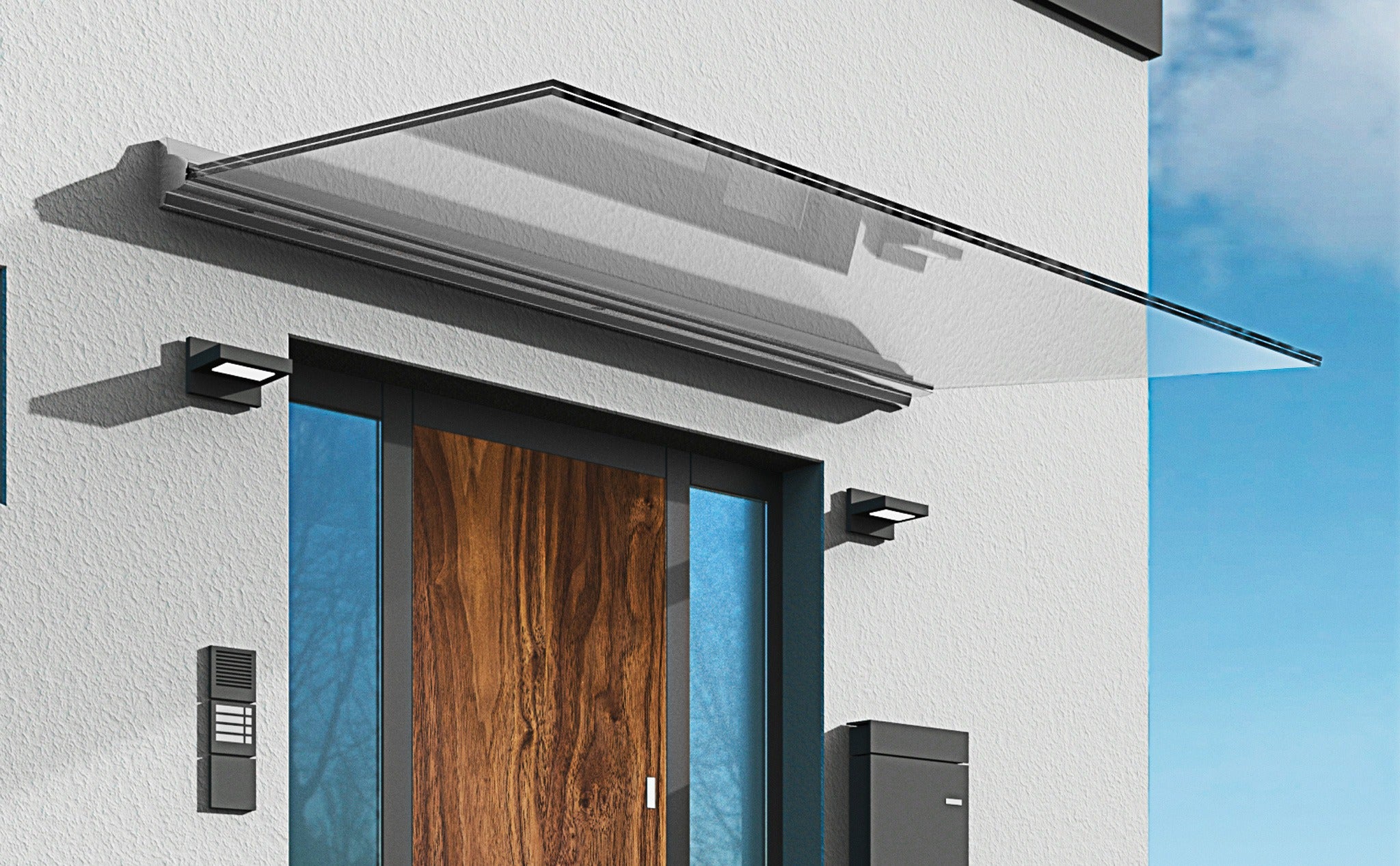

glazen overkapping VD 1511-17

  • maatwerk mogelijk
  • eenvoudige montage
  • glasbreedte max. 3000 mm
  • 17,52 mm VSG uit LSG met een tussenlaag van PVB of SentryGlas® SG 5000 volgens aBG 70.3-253
  • max. vrijdragende overspanning: 1000 mm (PVB-folie) / 1100mm (SentryGlas® folie)
  • tot 3,98 kN/m 2 belasting (met 900 mm overspanning en SentryGlas® folie)
  • er kunnen meerdere profielen in serie worden gemonteerd
  • er zijn geen randuitsparingen in het glaspaneel nodig
  • alleen het onderste glaspaneel van het laminaat heeft gaten nodig voor de bevestiging (geen risico op boorverschuivingen in het laminaat)



overkapping muur-profiel 1511-17

art.nr. glass thickness mounting hole outspan PVB film outspan SentryGlas® glass width total width
1511E6EV1-17-1400 17,52 mm 7x ≤ 1000 mm ≤ 1100 mm 1398 mm 1407 mm
1511E6EV1-17-1600 17,52 mm 8x ≤ 1000 mm ≤ 1100 mm 1598 mm 1607 mm
1511E6EV1-17-1800 17,52 mm 9x ≤ 1000 mm ≤ 1100 mm 1798 mm 1807 mm
1511E6EV1-17-2000 17,52 mm 10x ≤ 1000 mm ≤ 1100 mm 1998 mm 2007 mm
1511E6EV1-17-2300 17,52 mm 12x ≤ 1000 mm ≤ 1100 mm 2298 mm 2307 mm
1511E6EV1-17-2400 17,52 mm 12x ≤ 1000 mm ≤ 1100 mm 2398 mm 2407 mm
1511E6EV1-17-2500 17,52 mm 12x ≤ 1000 mm ≤ 1100 mm 2498 mm 2507mm
1511E6EV1-17-2800 17,52 mm 12x ≤ 1000 mm ≤ 1100 mm 2798 mm 2807 mm
1511E6EV1-17-3000 17,52 mm 12x ≤ 1000 mm ≤ 1100 mm 2998 mm 3007 mm
1511E6EV1-17-V 17,52 mm custom ≤ 1000 mm ≤ 1100 mm custom custom



canopy wall-profile combination sets 1511-17

art.nr. glass thickness width in mm comprised of connector stud included
1511E6EV1-17-2300 17,52 mm 2300 900 + 1400 mm 1 x 1510-11VA
1511E6EV1-17-2500 17,52 mm 2500 900 + 1600 mm 1 x 1510-11VA
1511E6EV1-17-2700 17,52 mm 2700 3 x 900 mm 2 x 1510-11VA
1511E6EV1-17-2800 17,52 mm 2800 2 x 1400 mm 1 x 1510-11VA
1511E6EV1-17-2900 17,52 mm 2900 900 + 2000 mm 1 x 1510-11VA
1511E6EV1-17-3000 17,52 mm 3000 1400 + 1600 mm 1 x 1510-11VA
