VD1511-21

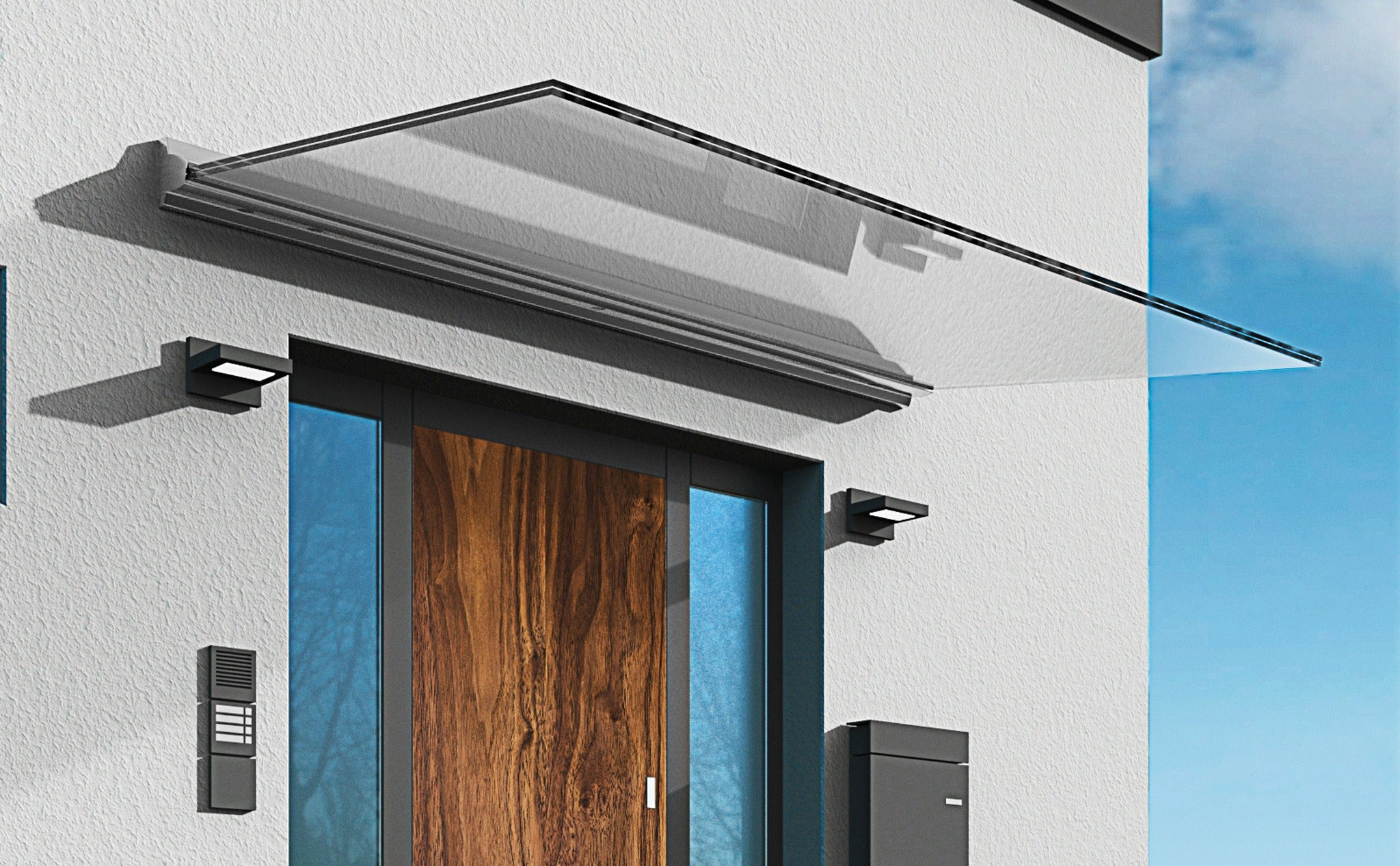

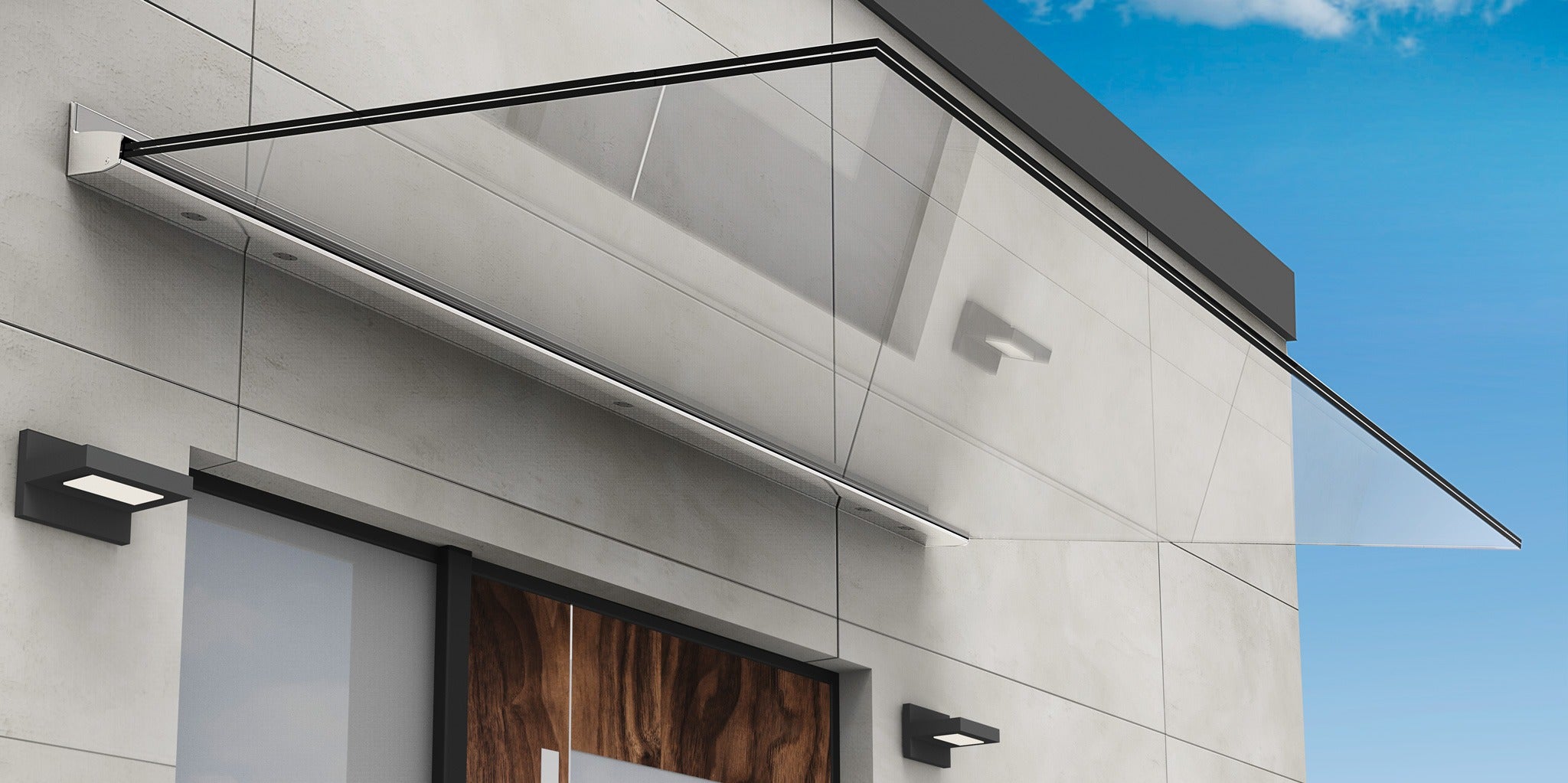

glazen overkapping VD 1511-21

    • Geen trekstangen nodig
    • Eenvoudige montage en verdekte bevestiging
    • Glasbreedte tot 3000 mm
    • 52 mm LSG van TVG met SentryGlas® tussenlaag
    • 1100 mm uitsteek
    • tot *6,15 kN/m2 belasting
    • meerdere wandprofielen kunnen achter elkaar worden gemonteerd
    • geen randuitsparingen nodig in het glas
    • alleen het onderste glaspaneel in het laminaat heeft glasboringen nodig voor de bevestigingselementen (geen risico op foutieve gaten in het laminaat)

    *met een spanwijdte van 900 mm

    art.nr. glass thickness mounting hole outspan PVB film outspan SentryGlas® glass width total width
    1511E6EV1-21-1400 21,52 mm 7x ≤ 1200 mm ≤ 1200 mm 1398 mm 1407 mm
    1511E6EV1-21-1600 21,52 mm 8x ≤ 1200 mm ≤ 1200 mm 1598 mm 1607 mm
    1511E6EV1-21-2000 21,52 mm 10x ≤ 1200 mm ≤ 1200 mm 1998 mm 2007 mm
    1511E6EV1-21-2300 21,52 mm 12x ≤ 1200 mm ≤ 1200 mm 2298 mm 2307 mm
    1511E6EV1-21-2400 21,52 mm 12x ≤ 1200 mm ≤ 1200 mm 2398 mm 2407 mm
    1511E6EV1-21-2500 21,52 mm 12x ≤ 1200 mm ≤ 1200 mm 2498 mm 2507 mm
    1511E6EV1-21-2800 21,52 mm 12x ≤ 1200 mm ≤ 1200 mm 2798 mm 2807 mm
    1511E6EV1-21-3000 21,52 mm 12x ≤ 1200 mm ≤ 1200 mm 2998 mm 3007 mm
    1511E6EV1-21-V 21,52 mm custom ≤ 1200 mm ≤ 1200 mm custom custom



    canopy wall-profile combination sets 1511-21

    art.nr. glass thickness width in mm comprised of connector stud included
    1511E6EV1-21-1800 21,52 mm 1800 2 x 900 mm 1 x 1510-11VA
    1511E6EV1-21-2300 21,52 mm 2300 900 + 1400 mm 1 x 1510-11VA
    1511E6EV1-21-2500 21,52 mm 2500 900 + 1600 mm 1 x 1510-11VA
    1511E6EV1-21-2700 21,52 mm 2700 3 x 900 mm 2 x 1510-11VA
    1511E6EV1-21-2800 21,52 mm 2800 2 x 1400 mm 1 x 1510-11VA
    1511E6EV1-21-2900 21,52 mm 2900 900 + 2000 mm 1 x 1510-11VA
    1511E6EV1-21-3000 21,52 mm 3000 1400 + 1600 mm 1 x 1510-11VA
